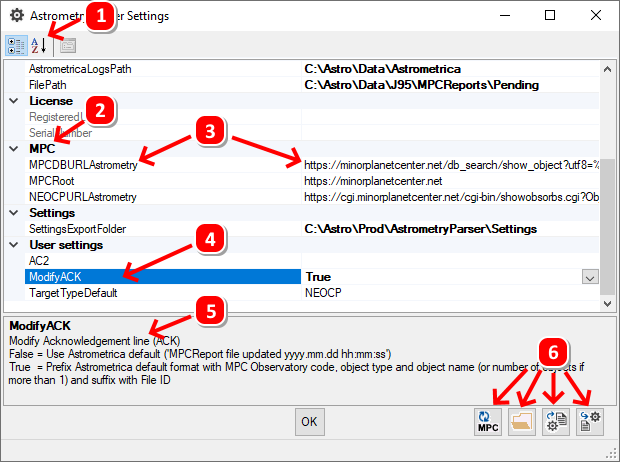

The Settings screen is displayed by pressing the Settings button on the toolstrip. It is also displayed on first use after installation to allow initial settings to be made if required.


The parts and controls on the screen are described below:



  1. Order by Category (the default sort order), or order alphabetically by Setting.
  2. Category (settings with similar usage are grouped in the same category when ordered by Category)
  3. Setting name and value. Some settings have default values. When the defaults are changed the value appears in bold
  4. Selected setting highlighted by mouse click
  5. Extended description displayed for the selected setting. Drag horizontal separator line to resize description area.
  6. Settings export and import buttons:


Refresh Star Catalogue list from MPC

Star catalogues are occasionally added and removed from the MPC's list of approved catalogues. The codes are used to translate from the astCat ADES column to MPC1992 NET header records. Press the MPC refresh button to download the latest list from the MPC. An Internet connection is required.


Open Settings Export Folder with Windows Explorer


Export settings to a text file in the Settings Export Folder

Settings can be exported to a text file and used to restore settings if needed, e.g. if the program has to be re-installed.

The SettingsExportFolder setting must be configured before settings can be exported.

The exported settings are contained in a tab-delimited file named <machinename>.AstrometryParser.AppSettings.<yyyymmdd>_<hhmmss>.cfg where

<machinename> is the name of the computer

<yyyymmdd> and <hhmmss> is the date and time when the settings were exported.


Import settings

To import settings previously exported, use one of the following methods:

  • Drag and drop a valid settings .cfg file on the Import button.

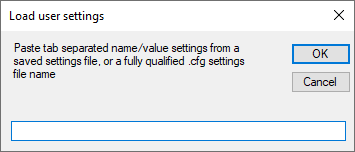

  • Press the Import button to be prompted with:



Either copy and paste one or more tab-delimited settings from a valid settings .cfg file, or enter the file name (including full path) of a valid .cfg file. The settings will be imported when OK is pressed.


When settings are imported, all the incoming settings will overwrite any matching existing settings. Any existing settings that are not included in the import will be left unchanged.
